Date Coder

Name: Date Coder
Brand: Hong Sheng Packaging

Prints dates, batch numbers and weights on packaging — desktop and hand-press models (the latter mounts on sealers).

Packaging Machinery2 models

HS-88 HS-86

Ask on LINE Call us

Send us photos or requirements of your product and we'll recommend the right materials and machines.

Overview

Codes dates, batch numbers, weights and other text onto paper boxes, paper, plastic bags, aluminum foil bags, laminated bags and other packaging materials. Available as a desktop label coder and a hand-press date coder that can be mounted on sealing machines.

Applications

Scope: coding dates, batch numbers, weights and other text on paper boxes, paper, plastic bags, aluminum foil bags, laminated bags and other packaging materials

Models & Specifications

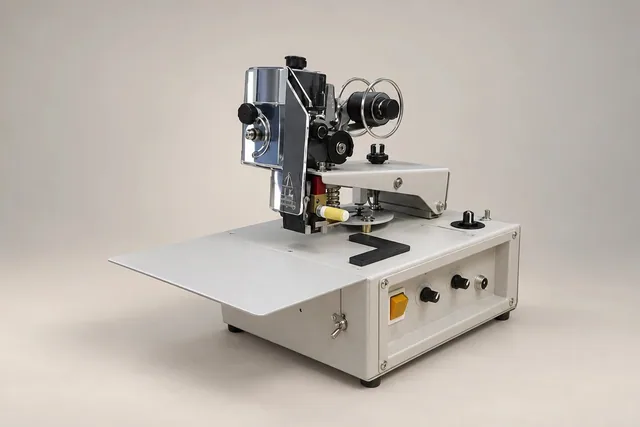

HS-88Desktop Label Coder

Characteristics: • Adjustable coding time • Adjustable coding pressure • Saves time and effort at low cost • Type-head pre-press device for safe use without pinching hands • Electric eye auto-detection; foot pedal or touch triggering optional, with adjustable detection time • Solenoid valve overheating protection • Optional special 3-line coding

Machine Weight	10 kg
Machine Dimensions	370 L × 220 W × 290 H (mm)
Power Supply	AC 110V / 220V 50/60 HZ
Coding Range	8 mm × 28 mm (1 or 2 lines)
Font Size	2 mm × 4 mm

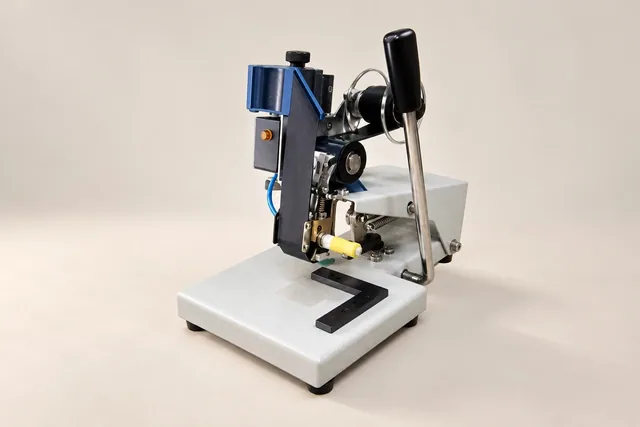

HS-86Hand-Press Date Coder

Characteristics: • Can be mounted on all types of sealing machines for sealing and date coding in one step • Two-way plug-in type holder — no need to change type when reversing print • Patented ribbon anti-wrinkle heat insulation prevents the ribbon from touching the heater and twisting or breaking • Small and space-saving, clear printing, easy ribbon replacement • Optional special 3-line coding

Machine Weight	3 kg
Machine Dimensions	220 L × 180 W × 220 H (mm)
Power Supply	AC 110V / 220V 50/60 HZ
Coding Range	8 mm × 28 mm (1 or 2 lines)
Font Size	2 mm × 4 mm
